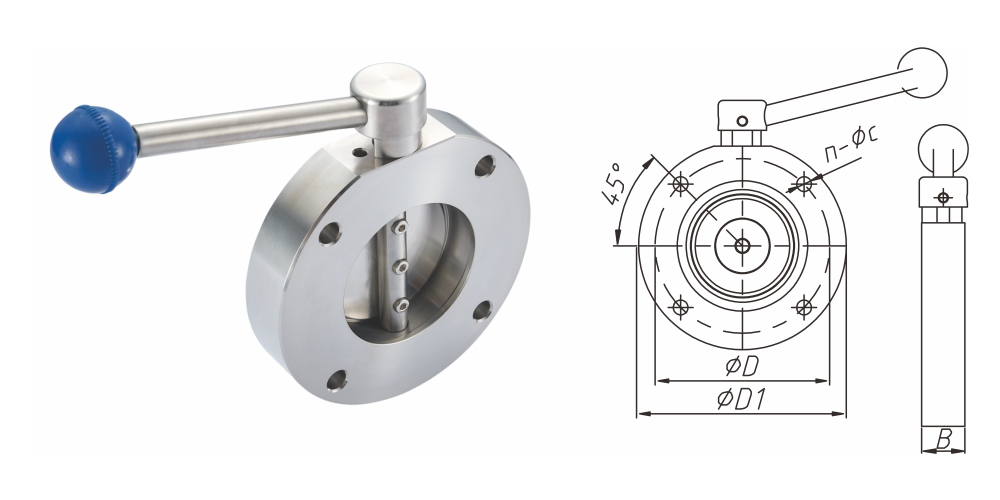

| 型号 | 通径 | 外观尺寸（mm) | 连接标准 | |||
| D | D1 | B | n-Φc | |||
| GL-32 | 32 | 78 | 64 | 22 | 4-Φ7 | JB919 |
| GL-40 |
40
|
85 | 70 | 22 | 4-Φ7 | JB919 |
| GL-50 | 50 | 110 | 90 | 22 | 4-Φ9 | JB919 |
| GL-65 | 65 | 125 | 105 | 26 | 4-Φ9 | JB919 |
| GL-80 | 80 | 145 | 125 | 30 | 4-Φ9 | JB919 |
| GL-100 | 100 | 170 | 145 | 30 | 4-Φ12 | JB919 |
| GL-150 | 150 | 220 | 195 | 35 | 8-Φ12 | JB919 |
| GL-200 | 200 | 275 | 260 | 40 | 8-Φ12 | JB919 |
