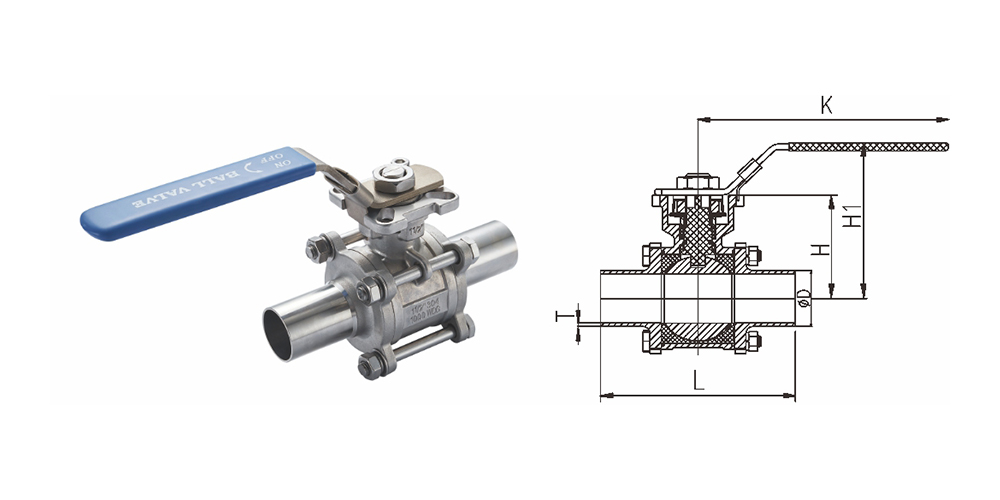

| SIZE | D | T | L | H | H1 | K |
| 1/2" | 12.7 | 1.24 | 135 | 38 | 68 | 130 |
| 3/4" |
19.05
|
1.65 | 135 | 42.5 | 72.5 | 130 |
| 1" | 25.4 | 1.65 | 162 | 52.5 | 86.5 | 165 |
| 1-1/4" | 31.8 | 1.65 | 157 | 58.5 | 99.5 | 165 |
| 1-1/2" | 38.1 | 1.65 | 200 | 73 | 116.5 | 215 |
| 2" | 50.8 | 1.65 | 214 | 78.5 | 122 | 215 |
| 2-1/2" | 63.5 | 1.65 | 254 | 95 | 138.5 | 215 |
| 3" | 76.2 | 1.65 | 280 | 110.5 | 157.5 | 320 |
| 4" | 101.6 | 2.11 | 306 | 122.5 | 169.5 | 320 |
